概述Descriptions

本機組是一種可以同時完成干燥和造粒的裝置，按工藝要求可以調節料液汞的壓力、流量、噴孔的大小，得到所需的按--定大小比例的球形顆粒。本機組工作過程為料液通過隔膜汞高壓輸入，噴出霧狀液滴，然后同熱空氣并流下降，大部分粉粒由塔底排料口收集，廢氣及其微小粉術經旋風分離器分惠，房氣由抽風機排出，粉末由設在旋風分離器下端的授粉筒收集，風機出口還可裝備二級除塵裝置，回收率在96%-98%以上。本機組與物料接觸部分的塔體、管道、分離器的材料均采用SUS304制作，在塔體內部與外殼之間有足夠的保溫層，填充材料為超細玻璃棉。塔體設有觀察門、視鏡、光源及控制儀表。由電器控制操作和顯示。本機組的熱源裝置采用蒸氣加熱或電加熱器。具有操作方便，啟動快，結構緊湊，執風干凈清潔等優占。另外在電氣控制柜內裝有電加熱器的控制調節裝置，使進口溫度無級調節。對缺電地區可采用蒸氣加熱或燃煤熱風爐等方式，局部或全部代替電加熱裝置，本廠可以根據用戶的實際提供需要的加熱方式。
This unit is a device that can complete drying and granulation at the same time.According to technological requirements, the pressure, flowrate and orifice size of feed liauid mercury can be adusted to obtain the reauired spherical particles in a certain size ratio The working process of the unit is as follows:feed liquid is input under high pressure through diaphragm -mercury, atomized liquid drops areejected, and then flow down in parallel with hot air.Most of the powder particles are collected by the discharge port at the bottom of the tower. Waste gas and its tiny powder are separated by cyclone separator. Waste gas is discharged by exhaust fan.Powder is collected bypollination barrel arranged at the lower end of cyclone -separator.The outlet of fan can also be equipped with secondary dust removal device,with a recovery rate of over96%-98%The tower body, pipeline and separator of the unit incontact with the materials are made of SUS304,There is sufficient thermal insulationlayer between the tower body and the outer shel, and the filing material is superfine glasswoolThe tower body is provided with anobservation door. a siaht alass. a liaht source and a control instrument.The operation and displav are controlled by electrical apoliances The heat source device of this unit adopts steam heating or electric heaterit has the advantages of convenient operation. quick start-up compact structure.clean hot air.etc.Inaddition,an electric heater control and adjustment device is installed in the electric control cabinet to continuously adjust the inlet temperature.Steam heating or coal-fired hot-blast stove can be used for power shortage areas, and electric heating devices can be partially or completely replaced,Our factory can provide the required heating methods according to the actual conditions of users.

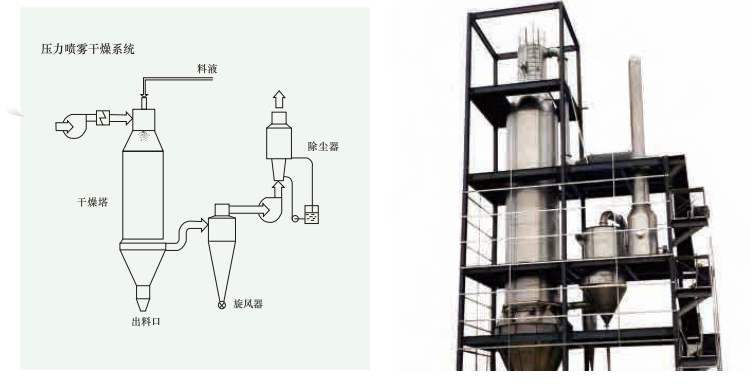

流程圖 Flow chart

應用Applications
本機主要適用于醫藥、食品、化工等行業進行粉末或顆粒物料的干燥。
食品工業:全脂奶粉、胳朊、可可奶粉、代乳粉、蛋青(黃)等。燕麥、雞汁、咖啡、速溶茶、調味香料肉、蛋白質、大豆、花生、蛋白質、蛋白質水解物等。玉米漿、玉米淀粉、葡萄糖、果膠、麥芽糖、山梨酸鉀、南瓜粉等。
醫藥品:中藥浸膏、藥膠、酵母、維生素、抗生素、淀粉酶、脂肪酶等。
塑料樹脂:AB、ABS乳液、尿醛樹脂、酚醛樹脂、密膠(脲)甲醛樹脂、聚乙烯、聚氯乙烯等。
洗滌劑:高級洗衣粉、普通洗衣粉、肥皂粉、蘇打粉、乳化劑、增自劑、磷酸劑等。
化學工業:氮化鈉(鉀)、堿性染料顏料、墊料中間體。Mn,O、甲荃硅酸、催化劑、硫酸劑、氨基酸、白炭黑等。
陶瓷:氫化鋁、瓷磚材料、氧化鎂、滑石等。
其它:氫氧化鋁、氯化鈣、硬脂酸劑等冷卻噴霧。
This machine is mainly suitable for drying powder or granular materials in medicine,food,chemical and other industries.Food Industry:Whole Milk Powder.Skeleton.Cocoa Milk PowderMilk Substitute,Egg White(Yellow),etcOatchicken juice, coffee instant tea,flavored meat. protein, soybean,peanut,protein,protein hydrolysate. etc.Corn steep liquor.corn starch,glucose, pectin. maltose, potassium sorbate, pumpkin powderetc.
Pharmaceuticals: Chinese medicine extractmedicine glue yeastvitamins, antibiotics, amylase, lipase, etc.
Plastic resins: AB,ABS emulsion,urea-formaldehyde resin,phenolic resin,urea-formaldehyde resin,polyethylene,polyvinyl chloride, etc.
Detergent: Advanced washing powder, ordinary washing powder,soap powder,soda powder, emulsifier, whitening agent, phosphoric acidagent, etc.
Chemical Industry: Sodium Fluoride(Potassium),Basic Dve Piament.Dve Intermediate.Mn3O4.Methvlsilicic Acid,Catalvst.Sulfuric Acid.Amino AcidWhite Carbon Black etc.
Ceramics: alumina, ceramic tile materials magnesia, talcetc.
Other: aluminum hydroxide,calcium chloride, stearic acid and other cooling spray.

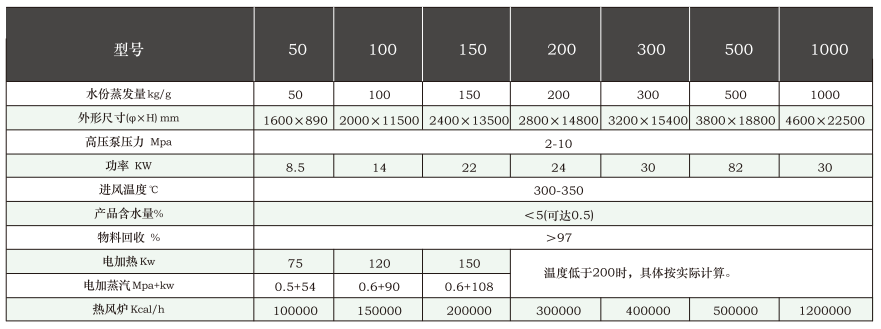

技術參數 Technical parameters
