概述 Descriptions

噴霧干燥是液體工藝成形和干燥工業中最廣泛應用的工藝。最適用于從溶液、乳液、懸浮液和可泵性糊狀液體原料中生成粉狀、顆粒狀固體產品。因此，當成品的顆粒大小分布、殘留水份含量、堆積密度和顆粒形狀必須符合精確的標準時，噴霧干燥是一道十分理想的工藝。

Spray drying is the most widely used process in liquid process forming and drying industry. It is most suitable for producing powdery and granular solid products from solutions, emulsions, suspensions and pumpable pasty liquid raw materials. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the finished product must conform to accurate standards.

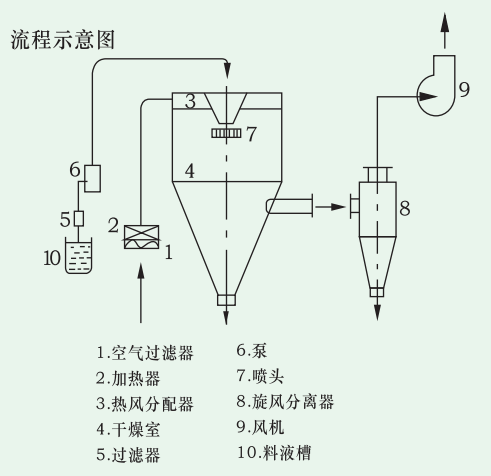

原理 Principles

空氣經過過濾和加熱，進入干燥器頂部空氣分配器，熱空氣呈螺旋狀均勻地進入干燥室。料液經塔體頂部的高速離心霧化器，(旋轉)噴霧成極細微的霧狀液珠，與熱空氣并流接觸，在極短的時間內可干燥為成品。成品連續地由于燥塔底部和旋風分離器中輸出，廢氣由風機排空。

After filtration and heating, the air enters the air distributor at the top of the dryer, and the hot air enters the drying chamber spirally and evenly. The feed liquid passes through a high-speed centrifugal atomizer at the top of the tower body and is (rotationally) sprayed into extremely fine atomized liquid beads, which are in parallel flow contact with hot air and can be dried into a finished product in a very short time. The finished product is continuously output from the bottom of the drying tower and the cyclone separator, and the waste gas is evacuated by the fan.

特點 Features

干燥速度快，料液經霧化后，表面積大大增加,在熱風氣流中，瞬間就可蒸發95%-98%的水份，完成干燥時間僅需數秒鐘，特別適用于熱敏性物料的干燥。

產品具有良好的均勻度、流動性和溶解性、產品純度高、質量好。

生產過程簡化，操作控制方便。對于濕含量40-60%(特殊物料可達90%)的液體能一次千燥成粉粒產品，干燥后不需粉碎和篩選，減少生產工序，提高產品純度。對產品粒徑、松密度、水份，在一定

范圍內可通過改變操作條件進行調整，控制和管理都很方便。

The drying speed is fast. The surface area of the feed liquid is greatly increased after atomization. In hot air flow, 95%-98% of water can beevaporated in an instant. The drying time is only a few seconds. It is especially suitable for drying heat sensitive materials.

The product has good uniformity, fluidity and solubility, high purity and good quality.

The production process is simplified and the operation and control are convenient. For liquids with a moisture content of 40-60% (special materials can reach 90%), they can be dried into powder products at one time without crushing and screening after drying, thus reducing production procedures and improving product purity. The particle size, bulk density and water content of the product can be adjusted by changing the operating conditions within a certain range, and the control and management are very convenient.

應用 Applications

化學工業

氟化鈉(鉀)、堿性染料顏料、染料中間體、復合肥、甲醛硅酸、催化劑、硫酸劑、氨基酸、白炭黑等。

塑料樹脂

AB, ABS乳液、尿醛樹脂、酚醛樹脂、密膠(脲)甲醛樹脂、聚乙烯、聚氯乙烯

食品工業

富脂奶粉、胳朊、可可奶粉、代乳粉、豬血粉、蛋清(黃)等。食物及植物:燕麥、雞汁、咖啡、速溶茶、調味香料肉、蛋白質、大豆、花生蛋白質、水解物等。

糖類:玉米漿、玉米淀粉、葡萄糖、果膠、麥芽糖、山梨酸鉀等。

陶瓷、氧化鋁、瓷磚材料、氧化鎂、滑石粉等。

Chemical Industry

Sodium fluoride (potassium), basic dye pigment, dye intermediate, compound fertilizer, formaldehyde silicic acid, catalyst, sulfuric acid agent, amino acid, white carbon black, etc.

Plastic resin

AB, ABS emulsion, urea formaldehyde resin, phenolic resin, dense glue (urea) formaldehyde resin, polyethylene, polyvinyI chloride, etc.

Food Industry

Fat-rich milk powder, lecithin, cocoa milk powder, milk replacer, pig blood powder, egg white (yellow), etc.Food and Plants: Oats, Chicken Juice, Coffee, Instant Tea, Spicy Meat, Protein, Soybeans, Peanut Protein, Hydrolysates, etc.Sugar: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, etc.

Ceramics, alumina, ceramic tile materials, magnesium oxide, talcum powder, etc.

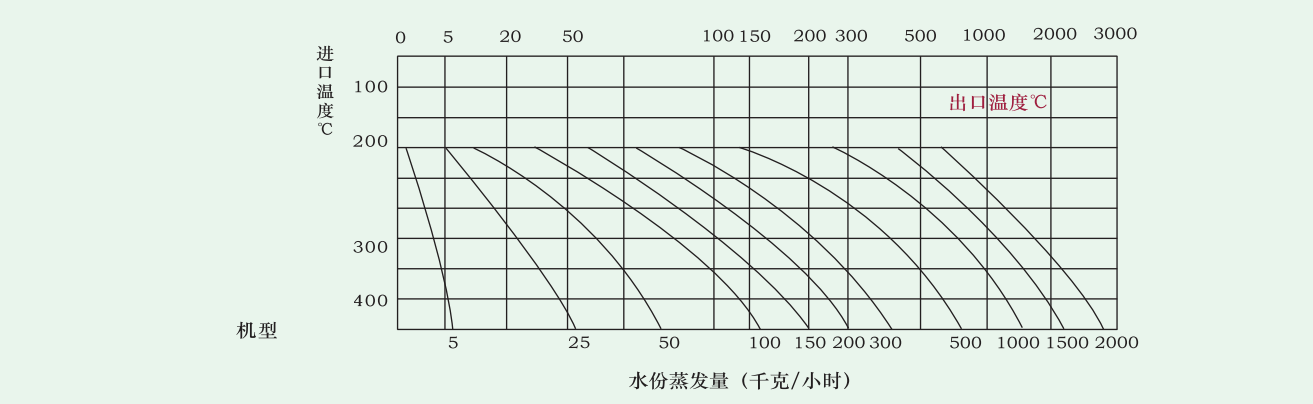

技術參數 Technicalparameters
