EYH 系列二維運動混合機
原理Principles
二維混料機主要由轉筒、擺動架、機架三大部分構成。轉筒.裝在擺動架上，由四個滾輪支撐并由兩個擋輪對其進行軸向定位。在四個支撐滾輪中，其中兩個傳動輪由轉動動力系統拖動使轉筒產生轉動;擺動架由一組曲柄擺桿機構來驅動，曲柄擺桿機構裝在機架上，擺動架由軸承組件支撐在機架上。
The two-dimensional mixer is mainly composed of three parts: rotating drum,swing frame and frame. The drum is mounted on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Of the four supporting rollers, two transmission wheels are dragged by a rotating power system to rotate the drum; The swing frame is driven by a group of crank swing rod mechanisms, the crank swing rod mechanisms are installed on the frame, and the swing frame is supported on the frame by bearing assemblies.
特點Features
EYH二維混料機的轉筒可同時進行二個運動，一個為轉筒的自轉，另一個為轉筒隨擺動架的擺動。被混合物料在轉筒內隨轉筒轉動、翻轉、混和的同時，又隨轉筒的擺動而發生左右來回的摻混運動，在這兩個運動的共同作用下，物料在短時間內得到充分的混合。EYH二維混料機適合所有粉、粒狀物料的混合。
The rotating drum of EYH 2-D mixer can perform two . movements at the same time, one is the rotation of the rotating drum, and the other is the swing of the rotating drum with the swing frame. The mixed materials rotate, turn over and mix with the rotating drum in the rotating drum, and at the same time, the mixed materials move back and forth left and right along with the swinging of the rotating drum. Under the combined action of the two movements， the materials are fully mixed in a short time.EYH two-dimensional mixer is suitable for mixing all powder and granular materials.
技術參數 Technical parameters
|
型號
|
料筒容積 (L)
|
裝料容積 (L)
|
最大裝料量 (kg/批)
|
搖動、轉動 次數 (r/min)
|
電機總功率 (kw)
|

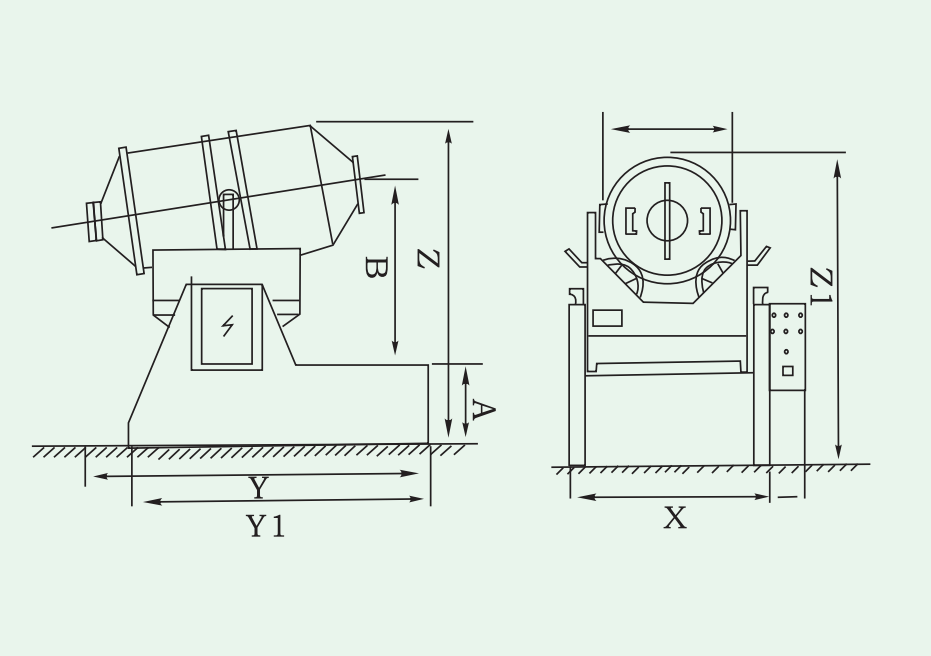

外型尺寸 XxYxZxZ,(mm)
|
總重量 (kg)
|
料筒重量 (kg)
|
|
EYH-300
|
300
|
180
|
90
|
18/11
|
1.3
|
925x905x1480x1360
|
340
|
60
|
|
EYH-600
|
600
|
360
|
180
|
16/9
|
2.2
|
1145x1105x1750x1600
|
1150
|
140
|
|
EYH-800
|
800
|
480
|
240
|
10/6
|
3
|
1305x1255x1900x1790
|
1600
|
200
|
|
EYH-1000A
|
1000
|
600
|
300
|
8/6
|
3
|
1375x2255x1910x1770
|
1700
|
240
|
|
EYH-1500A
|
1500
|
900
|
450
|
9/5
|
4.4
|
1505x2445x2200x2100
|
2000
|
320
|
|
EYH-2000A
|
2000
|
1200
|
600
|
8.5/5
|
5.2
|
1635x2445x2255x2120
|
2600
|
430
|
|
EYH-3000A
|
3000
|
1800
|
900
|
7/4.5
|
7.0
|
1905x2755x2600x2420
|
3500
|
620
|
|
EYH-4000A
|
4000
|
2400
|
1200
|
7.8/5
|
9.5
|
2035x3205x2755x2550
|
4100
|
700
|
|
EYH-6000A
|
6000
|
3600
|
1800
|
7/4
|
13
|
2265x3805x3230x2960
|
6100
|
1100
|
|
EYH-8000A
|
8000
|
4800
|
2400
|
6.7/4.5
|
13
|
2555x4305x3680x3390
|
7900
|
1450
|
|
EYH-10000A
|
10000
|
6000
|
3000
|
6/4.2
|
18.5
|
2665x4355x3800x3420
|
10000
|
1700
|
|
EYH-12000A
|
12000
|
7200
|
3600
|
6/4
|
18.5
|
2765x4985x4120x3760
|
13000
|
2000
|
|
EYH-15000A
|
15000
|
9000
|
4500
|
6/4
|
22
|
3035x4855x4500x4150
|
15000
|
2500
|
|
EYH-20000A
|
20000
|
12000
|
6000
|
5/3.5
|
30
|
3295x5155x5000x4500
|
18000
|
3100
|
