　　概述

　　快諫打散粉碎干燥裝苦是我公司為克服靜態干爆低效、高耗而研制開潑的新型高效流態化干燥設備。該機在設計過程中充分結合氣流干燥筆流杰干燥的特點，揚長避短，使整機具有合理的工藝結構和優械的使用性能，真正實現了流態化干燥的低耗、高效目標。熱空氣由進風口以一定的速度從干燥裝置底部進入攪拌粉碎干燥室.對物料強烈的剪切、吹浮、旋轉作用，于是物料受到離心，剪切，碰撞、磨擦而被微粒化，強化了傳質傳熱。在干燥裝置底部，較大較濕顆粒團在撞拌器的作用下被機械破碎，濕含量較低，顆粒度較小的顆粒被旋轉氣流夾帶，上升，在上升的過程中進一步干燥，由于氣調相作旋轉流動,固相慣性大于氣相，固氣兩相間的相對速度較大，強化兩相間的傳

熱效果，所以該機干燥強度高。

       Rapid Dispersion and Pulverization Drying Device is a new type of high efficiency fluidized drying equipment developed by our company to overcome the low efficiency and high consumption of static drying. In the design process, the machine fully combines the characteristics of fluidized drying such as airflow drying, to enhance its strengths and avoid its weaknesses, so that the whole machine has a reasonable techno oqica structure and superior performance. and trulv achieves the goal of low consumption and high efficiency of fluidized drying.Hot air enters the mixing and crushing drving chamber from the bottom of the drver at a certain speed through the air inlet.which has a strong shearing.blowing and rotating effect on the material.As a result the material is particulatized by centrifugation, shearing. collision and friction,thus enhancing the mass and heat transfer. At the bottom of the dryer, the larger and wetter particles are mechanically crushed under the action of the agitator. The particles with lower moisture content  and smaller particle size are entrained by the rotating airtlow and rise. During the process of rising, they are further dried.Due to the rotating flow of the gas-dry phase, the inertia of the solid phase is greater than that of the gas phase, and the relative velocity between the solid and gas phases is larger. The heat transfer effect of two phases is changed, so the machine has high drying strength.

　　特點

　　1.多種加料裝置供選擇，加料連續穩定，不會產生架橋現象。

　　2.干燥機底部設置特殊的冷卻裝置，避免了物料在底部高溫區產生變質現象。

　　3.特殊的氣壓密封裝置和軸承冷卻裝置，有效延長傳動部分使用壽命。

　　4.特殊的分風裝置，降低了設備阻力，同時使塔內風速趨于平衡。

　　5干燥室裝有分級環及旋流片，物料細度和終水份可調可控。

　　6.干燥室內周向氣速高，物料停留時間短，有效防止物料粘壁及熱敏性物料變質。

　　1.A variety of feeding devices are available,and the feeding is continuous and stable.and no bridging phenomenon will occur.

　　2, The bottom of the dryer is provided with a special cooing device to avoid the deterioration of materials in the high temperature area

　　at the bottom.

　　3.Special air pressure sealing device and bearing cooling device can effectively prolong the service life of the transmission part.

　　4. The special air distribution device reduces the equipnent resistance and makes the wind speed in the tower tend to be balanced.

　　5.The drying chamber is equipped with a grading ring and a swirl vane and the fineness and final moisture of the materal are

　　adjustable and controllable.

　　6. The circumferential air velocity in the drying room is high, and the material residence time is short.which effectively prevents the

　　material from sticking to the walland the heat-sensitive material from deteriorating.

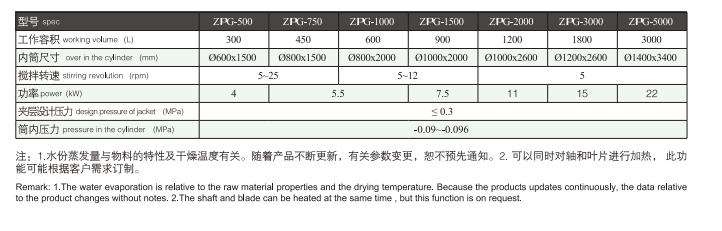

　　技術參數：
