概述：

強制精環蒸發結品器又稱FC(Forced Circuation)型結品器。是一種可以連續生產的通用型結品設備，廣泛成用于化工、輕工、運藥等行業的生產以及環保行業廢水蒸發結品處理。根據料渡性質的不同，F(xiàn)C型結品器分為加執蒸發型、間壁冷卻型或真空冷卻型等以滿足各種結品工藝的需要。強制循環蒸發結品器是由加熱器對待處理的料流進行加熱進入結晶分離室蒸發分離，溶液達到過飽和狀態便產生結品現象，由強制估環泵經多次循環加熱后結品室內過飽和溶液沉浸在懸浮品粒表面上，使是體逐漸長大，當易體教量達到一定濃度時即可將品獎排出另作處理。強制循環蒸發結品器具有生產能力大，產品的粒度分布較寬，約在0.8-4mm的范圍，適應各種物料的結品等特點。

Forced Circulation evaporation crystallizer is also called the FC(Forced Circulation) type of crystallizer can is a kind of continuous production of general-purpose crystalfization equipmentwidely used in the production of chemical industry,light industry. medicine and other industries as well as the evironmental protection industry waste water evaporation crystallization process According to the properties of matena liquid, FC fype crystallizer is divided into heating evaporation typecooling type or vacuum cooling tvoe partition, etc. So as to meet the needs of all kinds of crystallization process. Forced circulation evaporation crystallizer is by the heater heat treatment o matenal liquid into the crystallzation secaration chamber evaporation separation, achieve oversaturated solution crystallization phonomonon accurs, by repeated cyclic heating after the crystallization by forced circulation pump indoor immersed in a supersaturated solution suspended grain on the surinco, make the crystal grew up gradually, while the number of crvstal reaches a certain concentration of the crystal stumy discharge can be further processing.Forced circulation evaporation crystallization equpment has a large production capacity. product partide size distribution is wide, about the range of 0.8 to4 mm to adapt to the crstalization of  variety of materials, etc.

應用：

用于高濃縮、高粘度，含不溶性因形物等物料進行蒸發濃縮結晶。
Used for evaporation, concentration and crystallization of materials with high concentration, high viscosity and insolublo solids.

特點
Features
1、全套系統設計合理美觀、運行穩定、低耗節能，蒸汽耗量低;
2、濃縮比大，強制備環式，使粘度較大的料液容易流動蒸發，濃縮時間短:
3、特殊設計經簡單操作可實現切換，以適應不同產品的生產:
4、蒸發混度低 熱量得到充分利用料流受熱溫和，適用于熱敏性物料的濃縮
5、愿發曝調討強制活環，在管內受熱均勻，傳熱系做亮，可防止干鍵現像:
6、料液進入分離器再分離,強化了分離效果，使整體設備具有較大的操作彈性;
7、連續進出料，料液液位與所需濃度可實現自控;
8、太系續在蒸發后期采用強制活環的蒸發工藝，物料在接執管內的流速達到1.5~2m/s，在這種流速下不易發生者管理象，能夠有效的防止諸管現象的發生。
9、系統穩定運行摩較高，一個基發裝置要想穩定的運行，與一個良好的工藝是分不開的，設備之間的匹配以及選用合理的控制點能保證設備的穩定運行，我公司在三效蒸發器的設備設計方面以及整套工藝中的控制點的選取有獨特的設計理念以及經驗。因此能保證設備的穩定運行。
1.The whole system has reasonable and beautiful design stable operation, low eneray consumption and low steam consumption;
2.The concentration ratio is large, and it is forced to circulate, so that the feed liquid with high viscosity is easy to flowand evaporate and the concentration time is short
3. The special design can be switched by simple operation to adapt to the production of different products;
4 The evaporation temperature is low, the heat is fully utifzed, and the feed liquid is moderately heated, which is suitable for the concentration of heat-sensitive materia s;
5.The evaporator is heated evenly in the tube by forced circulationand the heat transfer coefficient is high,which can prevent the dry wall phenomenon;
6.The feed liquid enters the separator to be separated again, which strengthens the soparation effect and makes tho whole equipment have greater operational flexibility:
7.Continuous feeding and discharaing, the feed liguid level and the reguired concentration can be automatically controlled;
8. In the later stage of evaporation,this system adopts forced circulation evaporation process.and the flow rate of materials in the heat exchange tube reaches 1.5~2m/s,so it is not easy to block the tube at this fow rate,which can effectively prevent the tube from blocking.
9. The system has a high degree of stable operation.If an evaporation device wants to run stably, it is inseparable from a good process, The matching between devices and the selection of reasonable control points can ensure the stable operation of the equipment. Our company has a unique design concept and experience in the eguipment desian of the tripe-effect evaporator and the selection of control points in the whote process. so it can ensure the stable operation of the equipment.

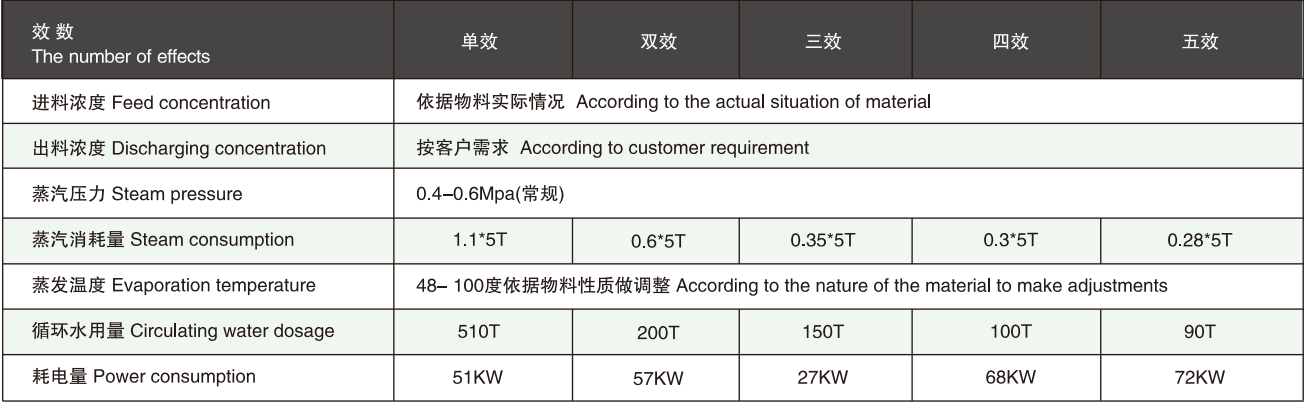

技術參數：
