概述 Descriptions

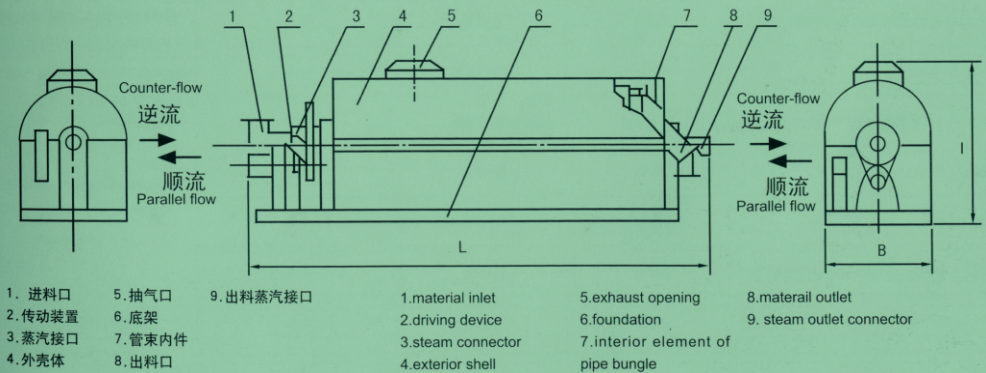

GZG管束干燥機是間接接觸式干燥機，其結構為固定的殼體內置帶有料鏟的可轉動的加熱管束。蒸汽通過旋轉接頭進入管內傳熱變?yōu)槔淠懦?，物料中的水分在管外受熱變成蒸汽由抽濕風機排出，物料在管束內被轉動的料鏟提升，均勻落至加熱管外表面，并從進口端由料鏟推至出料口得到干燥，它廣泛用于化工、輕工、食品和飼料等行業松散類濕物料的干燥。干燥物料范圍廣、水分蒸發量大，能耗低并能連續生產。

GZG tube bundle dryer is an indirect contact dryer. Its structure is a fixed shell with a rotatable heating tube bundle with a shovel. Steam enters the tube through a rotary oint to conduct heat and is changed into condensed water to be discharged; moisture in the material is heated outside the tube and is changed into steam to be discharged by a dehumidifying fan; the material is lifted by a rotating shovel in the tube bundle and evenly falls to the outer surface of the heating tube; and the material is pushed from the inlet end to the discharge port to be dried. The invention is widely used for drying loose wet materials in industries such as chemical industry, light industry, food and feed. The drying material has wide range, large water evaporation capacity, low energy consumption and continuous production.

應 用 Applications

適用于粉狀、顆粒狀、片狀類無大顆粒的松散類物料的干燥。

應用于化工、輕工、食品、糧食、飼料等行業，如淀粉廠、飼料廠、肉聯廠、酒廠、啤酒廠等。

It is suitable for drying powdery, granular and flaky loose materials without large particles.

It is used in chemical industry, light industry, food, grain,feed and other industries, such as starch factory, feed factory, meat union factory, winery, beer factory, etc.

特點Features

GZG管束式干燥機是間接加熱接觸式干燥機，既可順流干燥也可逆流干燥。是目前大部分國家使用的最廣泛、最先進的干燥機之一。其主要優點是經濟實用。在各種干燥設備中，動力消耗最低，熱耗低，每蒸發1公斤水僅需要量1.5-2公斤蒸氣。是沸騰式干燥機的50%。烘干1噸發酵草粉耗電僅需要15千瓦/時，是流化床的25%，電耗氣耗均達到國外同.類產品的先進水平?？筛稍锔咚菸锪?，干燥彈性大(能視不同的物料性質和水份要求對干燥時間進行調整);連續生產(自動化程度高)也可間歇生產(適合于特殊生產工藝)。該機附加配套設備少，占地面積小。工藝緊湊，受磨損件極少，易于安裝。

GZG tube bundle dryer is an indirect heating contact dryer, which can dry in both forward flow and reverse flow. It is one of the most widely used and advanced dryers in most countries. Its main advantage is economical and practical. In all kinds of drying equipment, the power consumption is the lowest and the heat consumption is low. Only 1.5-2 kg of steam is required per kg of water evaporated. It is 50% of the boiling dryer. Drying a ton of fermented grass powder requires only 15 kilowatts per hour, which is 25% of that of fluidized beds. The electricity and gas consumption reach the advanced level of similar products abroad. Can dry materials with high moisture content and high drying elasticity (the drying time can be adjusted according to different material properties and moisture requirements); Continuous production (high degree of automation) can also be batch production (suitable for special production process). This machine has less additional supporting equipment and small floor space. The process is compact, with few wormn parts and easy installation.

技術參數 Technicalparameters
